Bell Series 4 ATS — Arthroplasty & Trauma System

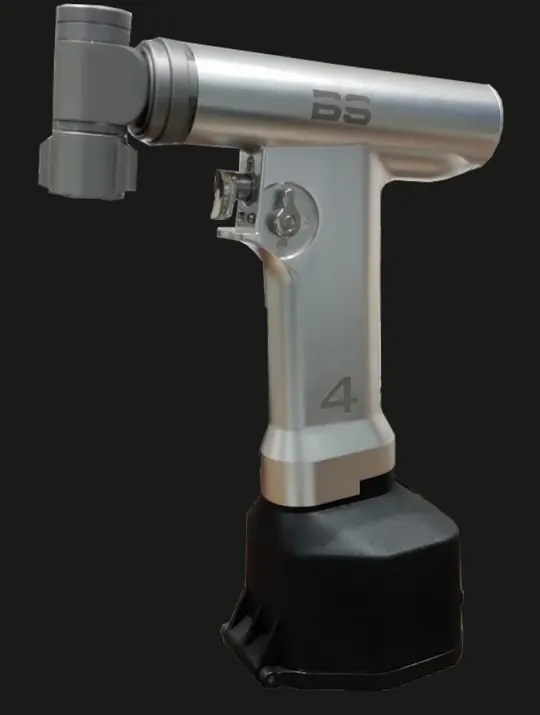

Bell Series 4 is Bell Surgical’s Arthroplasty and Trauma System (ATS). A high-torque, brushless modular drill handpiece and a saw handpiece with an 8-station rotatable head share quick-coupling attachments and a 9.6 V NiMH battery system with an autoclavable aseptic battery case. The improved power-to-weight ratio gives a well-balanced, light handpiece.
Elite Pharma is the exclusive authorised territory distributor of Bell Surgical for Telangana and Andhra Pradesh. Buy, demo and service through our team.
Key specifications
- Drill chuck (BS3DC)
- 1200 rpm
- AO quick coupling (BS3AOQC)
- 1200 rpm
- Hudson reamer (BS3HA51)
- 240 rpm
- AO reamer (BS3AO31)
- 400 rpm
- K-wire, small 0.8–1.5 mm (BS3KW01)
- 1200 rpm
- K-wire, big 1.8–3.5 mm (BS3KW02)
- 1200 rpm
- Battery pack (BS3BP)
- NiMH, 9.6 V
- Saw head
- 8-station rotatable
Source: Bell Surgical product literature (bellsurgical.com and Bell brochures). Confirm the configuration with your quotation.
Power system
- BS3BP — NiMH battery pack, 9.6 V
- BS3BC — aseptic battery case (autoclavable)
- BS3CS — battery charger
- BS3CPL — charger platform
- BS3TR — sterile transfer ring
Features
- High-torque handpiece
- Advanced brushless motor for enhanced torque and more precise cuts
- Modular drill handpiece
- Quick-coupling attachments
- 8-station rotatable saw head
- Variable speed control
- Improved power-to-weight ratio, well-balanced handpiece
- Ergonomic, light-weight, autoclavable handpieces
Typical applications
- Joint replacement (arthroplasty)
- Trauma
- Corporate & government hospitals
Why buy from Elite Pharma
- Free demo in your theatre (Telangana & Andhra Pradesh)
- Exclusive Bell Surgical distributor — supply, spares and service through Elite Pharma
- Backed by Bell Surgical’s 24×7 service team
- Buy-back schemes on request
- Care: wash and dry attachments after use, apply silicone oil, regular servicing
Quality & compliance
- Manufactured in India by Bell Corporation — ISO 13485:2016 certified, CDSCO certification (per Bell Surgical).
- Request model-specific specifications, certificates and dealership documents with your quote.
Product gallery
Product images courtesy Bell Surgical.
